Battery-powered Vacuum Lifter – Compact MVKE – 80 / 125 / 200 / 500 Kg

WHAT IS IT FOR

The MVKE single plate compact and modular lifting suction cup battery-powered is designed for the efficient and safe handling of slabs and blocks made of non-porous materials, such as stone, marble, granite, and similar. Thanks to its compact design and the ability to manually tilt from horizontal to vertical, this suction cup is perfect for outdoor use, such as in construction sites or yards, where compressed air is not available.
It is a versatile and reliable solution for lifting heavy materials quickly, conveniently, and safely, even in environments without access to the electrical grid.

Each model is sold complete with battery, charger, foam gasket and lifting plate

AVAILABLE MODELS

This suction cup is available in four models, each with a different lifting capacity:

1. MVKE 1/80 Compact battery-powered vacuum lifter:

   • Model: MVKE 1/80 RM
   • Single plate 250 × 250 mm (9,84″ x 9,84″)
   • 80 Kg (176 lb) capacity
   • Battery-powered
   • Battery life 2 hours in a continuous cycle
   • Safety: visual and acoustic alarm system
   • Commands on board the machine for gripping and releasing

2. MVKE 125/1 Compact battery-powered vacuum lifter:

   • Model: MVKE 125/1
   • Single plate 500 × 200 mm (19,68″ x 7,87″)
   • 125 Kg (275 lb) capacity
   • Battery-powered
   • Battery life 2 hours in a continuous cycle
   • Safety: visual and acoustic alarm system
   • Commands on board the machine for gripping and releasing

3. MVKE 200/1 Compact battery-powered vacuum lifter:

   • Model: MVKE 200/1
   • Single plate 500 x 300 mm (19,68″ x 11,81″)
   • 200 Kg (440 lb) capacity
   • Battery-powered
   • Battery life 2 hours in a continuous cycle
   • Safety: visual and acoustic alarm system
   • Commands on board the machine for gripping and releasing

4. MVKE 500/1 Compact battery-powered vacuum lifter:

   • Model: MVKE 500/1
   • Suction plate size: 600×400 mm
   • Maximum capacity: 500 Kg
   • Battery-powered
   • Battery life 2 hours in a continuous cycle
   • Safety: visual and acoustic alarm system
   • Commands on board the machine for gripping and releasing

ACCESSORIES

For greater flexibility and maintenance, the suction cup is equipped with essential accessories to extend its use and enhance its performance:

Replacement battery: The batteries are easily replaceable, allowing you to continue working without interruptions. The suction cup uses batteries with a Makita-type connection (so you can also use those from your Makita power tools).
Charger: Included in the package, the charger allows for quick battery recharging.
Replacement foam gasket: Seals in good condition are essential to ensure optimal adhesion of the plates to the surfaces being lifted.
Replacement plates: The plates are interchangeable and can be purchased separately. This way, with a single suction cup body, you can handle materials of different sizes by changing the plate according to work requirements.

• Plate 250 x 250 – capacity 80 Kg
• Plate 500 x 200 – capacity 125 Kg

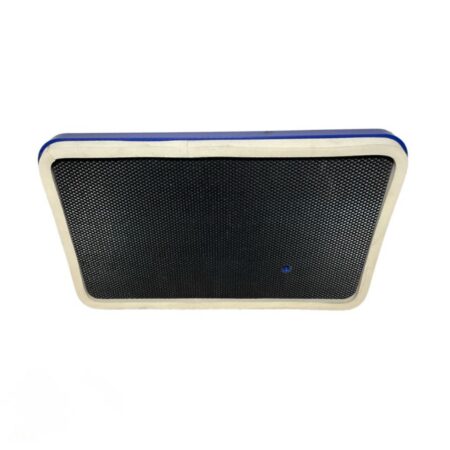

• Plate 500 x 300 – capacity 200 Kg
• Plate 600 x 400 – capacity 500 Kg
