CNC 3D Touch Probe Measuring Sensor | EasyTouch – Amastone
This probing sensor operates with a power supply ranging from 5 to 24 Vdc and features an NPN normally open (NO) output signal. Ideal for detecting material position, measuring surface flatness, or performing 3D object digitization. This probe is a versatile tool that can be used on CNC routers and CNC machining centers to minimize errors from manual setup.
This probe offers a repeatability of less than 10 μm for precise measurements at feed rates between 50 and 200 mm/min. It is built with a lightweight aluminum and ABS structure, weighing only 40g (80g including the cable).

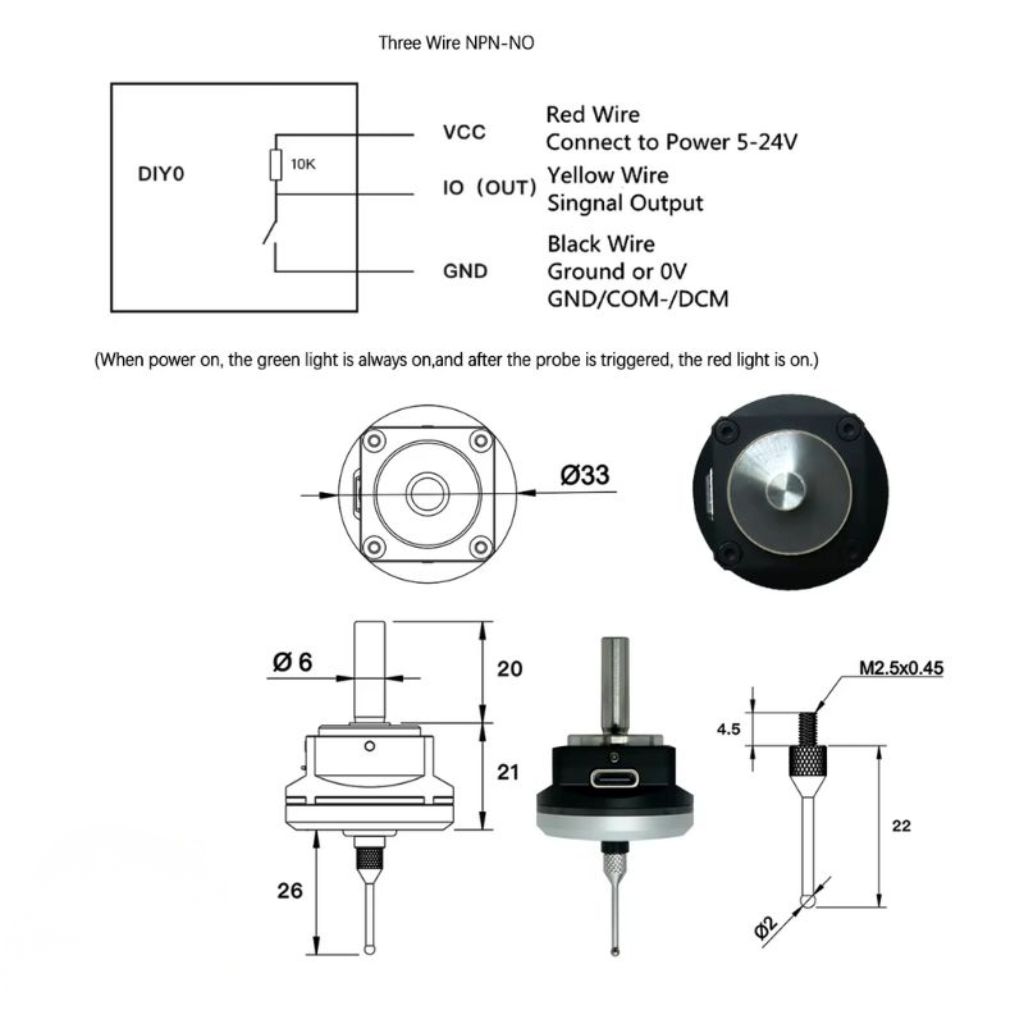

Among the product images, you will find the wiring diagram for the sensor’s contact.
