Conical stem for the replaceable heads

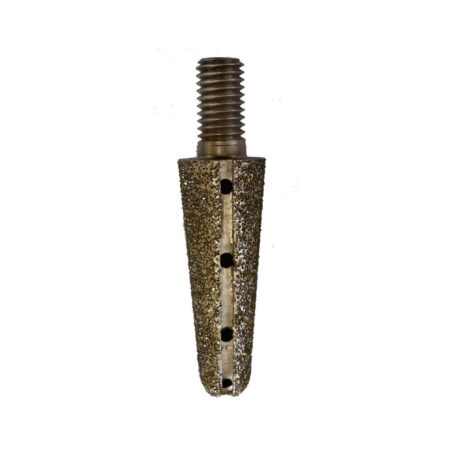

Conical stem for the use of interchangeable heads.

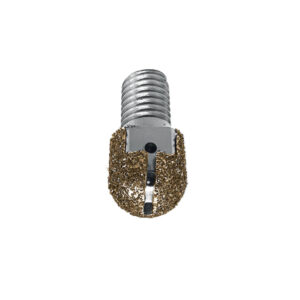

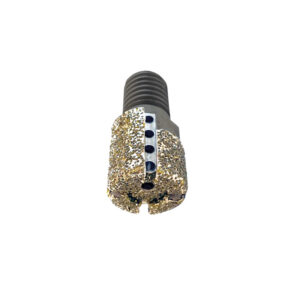

The stem has on one side the 1/2 Gas connection for connection to the spindle of the CNC machine, and on the other side, it has a female fitting that can be M10, M12 or M14 for mounting the spare electroplated heads.

The stem is available in 3 different models:

• conical shank from 30 to 15mm and the  height of the electroplated part is 50 mm
• conical shank from 30 to 25mm and the height of the electroplated is part 60 mm
• conical shank from 35 to 30mm and the height of the electroplated is part 60 mm

Usage parameters on CNC:

• RPM: 6000-7000
• Sinking: 2mm
• Feed: 2500-3000 mm / min
