Quartzite blade for bridge saws – Diatex

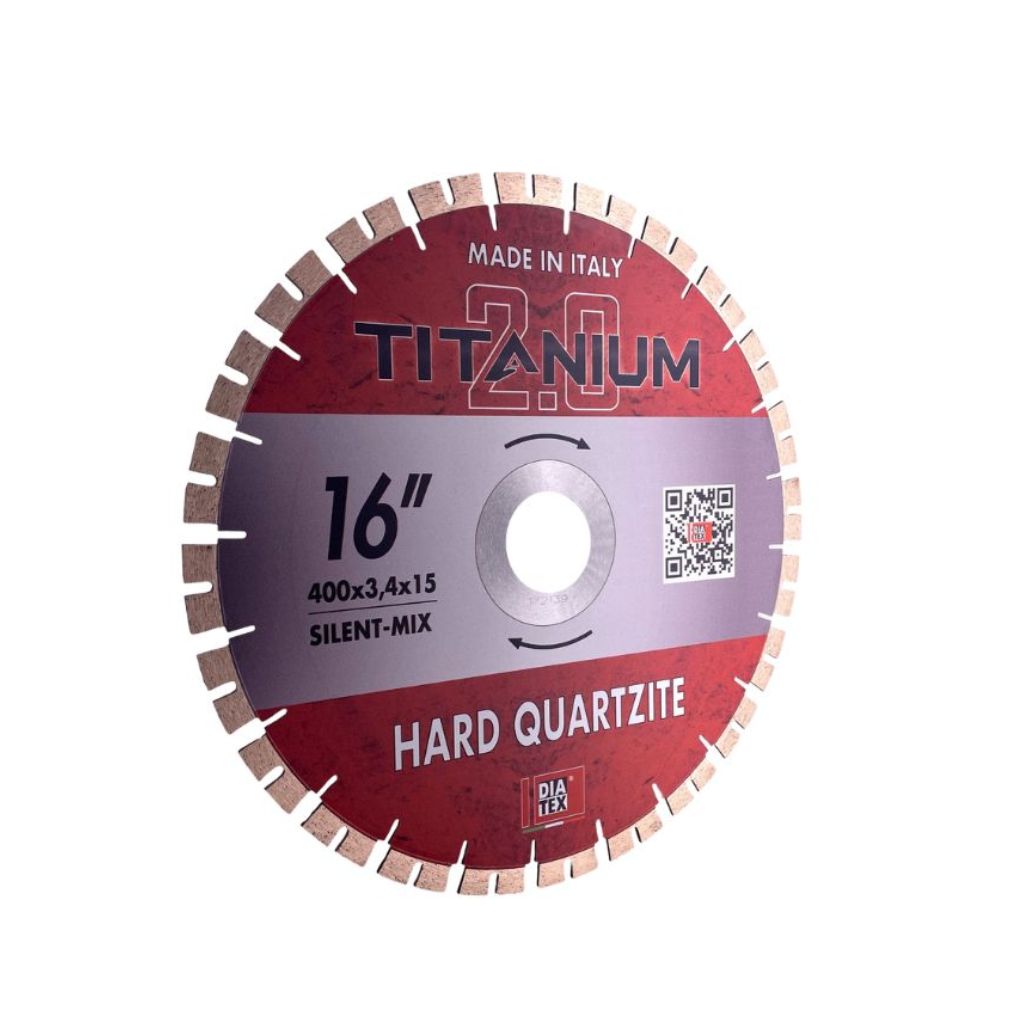

Quartzite blade for bridge saws (diam. 400mm – 16′) – Diatex

Natural quartzite cutting blade for bridge saws. Also, ideal for the cutting of very hard granite.

Quartzite is one of the hardest natural materials to cut. It is hard but at the same time fragile.
This is a diamond blade designed specifically to cut natural quartzite, has “MIX segments” to facilitate the flow of water, and is made with diamond grain for very hard materials. (Granite fabricators use this blade to cut Taj Mahal quartzite and other hard natural quartzites)
To obtain good cutting quality and long life, the blade must be used as follows:

• Always cut in passes, with a maximum cutting depth of 2.5mm
• Cutting with high linear speed: 8/10 meters per minute.

This quartzite blade is available in diameter 400mm (16”), to cut quartzites with a maximum total thickness of 2 or 3 cm.
Different diameters are available but on request (write to )

Suggested cutting parameters:

• Always cut in passes with depth max 2.5mm (0,1′)
• Speed 10meter/min (400’/minute)
• RPM: 1450 rpm
