Bourns – Single turn potentiometer 10KΩ complete with knob

25,40 € Net of VAT

5 in stock (more shipped in 7-10 days)

SKU: PAMO1 Category:
Description

Bourns – Single turn potentiometer 10KΩ complete with knob

  • Tolerance: ±20%
  • Electrical rotation angle: 250°
  • Mounting thread: 3/8″x32UNEF
  • Length of the axis “L”: 22.23 mm (look at photos)

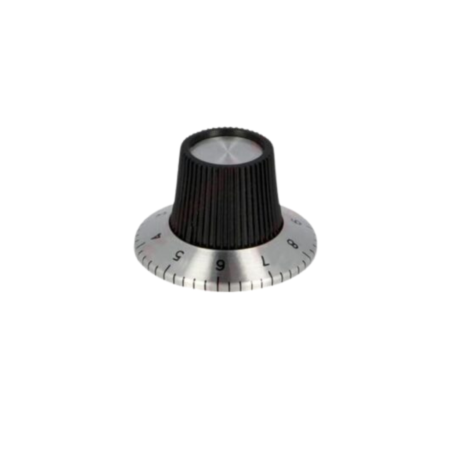

Knob features

  • Diameter: 15 mm
  • Height: 18.1 mm
  • Flange diameter: 29.2 mm
Additional Info
Brand

Bourns
Type

Shaft
Kind of potentiometer

Single turn
Resistance

10KΩ
Power

1W
Characteristics

Linear
Shaft diameter

6.35 mm
Potentiometer life

100.000 cycles
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Bourns – Single turn potentiometer 10KΩ complete with knob”

Your email address will not be published. Required fields are marked *

Request info

There are no questions yet. Be the first to ask a question about this product.

You may also like…

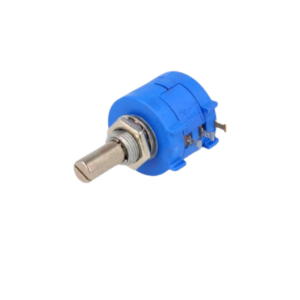

Bourns – Multiturn potentiometer 10KΩ
