The Edplit tileable push hidden towel holder set is designed for recessed installation in tiled bathroom walls, allowing the towel holders to be integrated directly into the wall covering.

The visible front part can be covered with a piece of the same tile or finishing material used on the wall, creating a clean, discreet and almost invisible result.

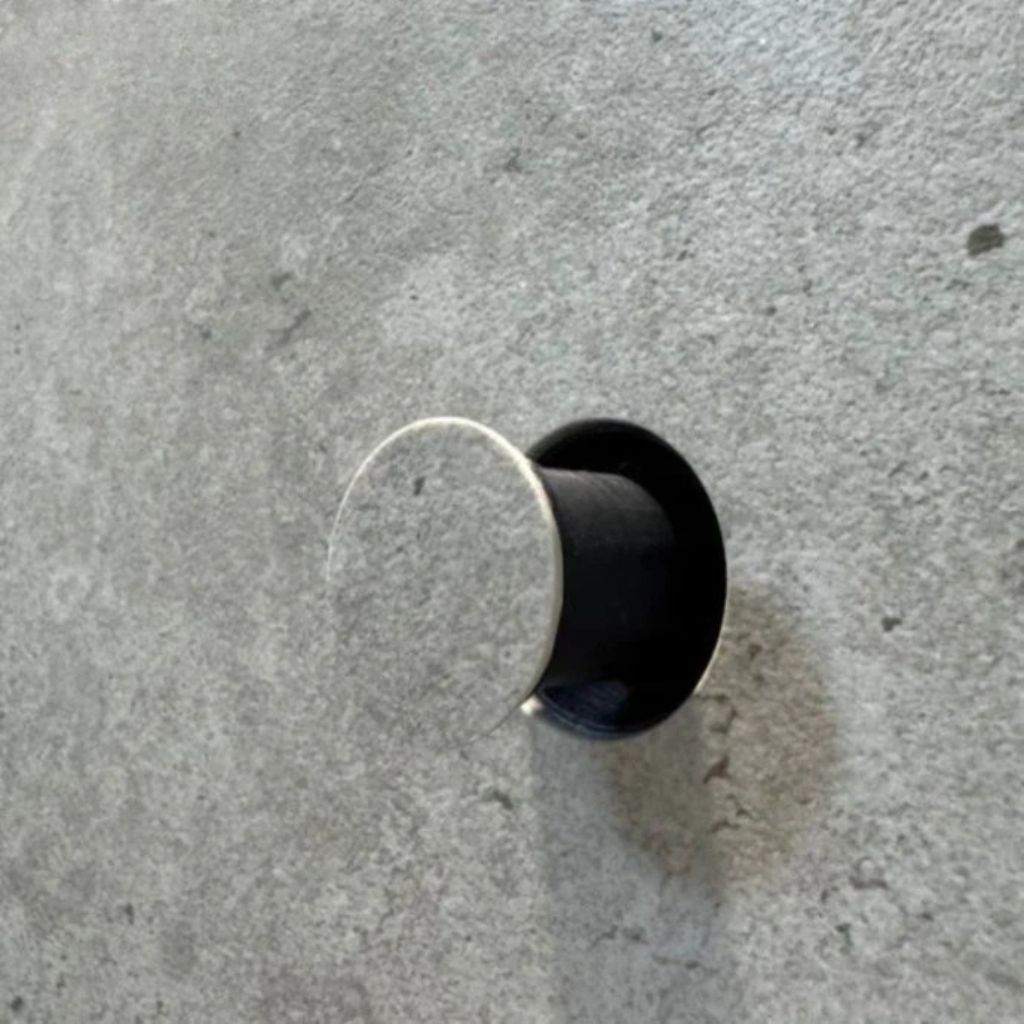

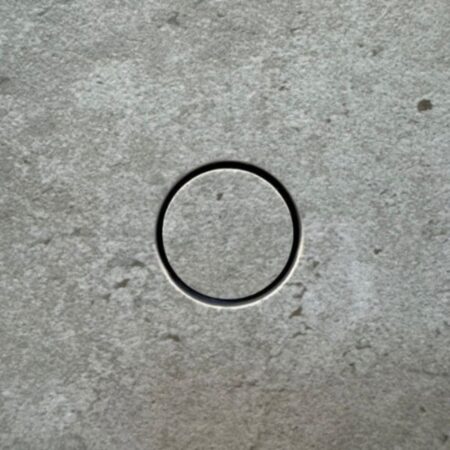

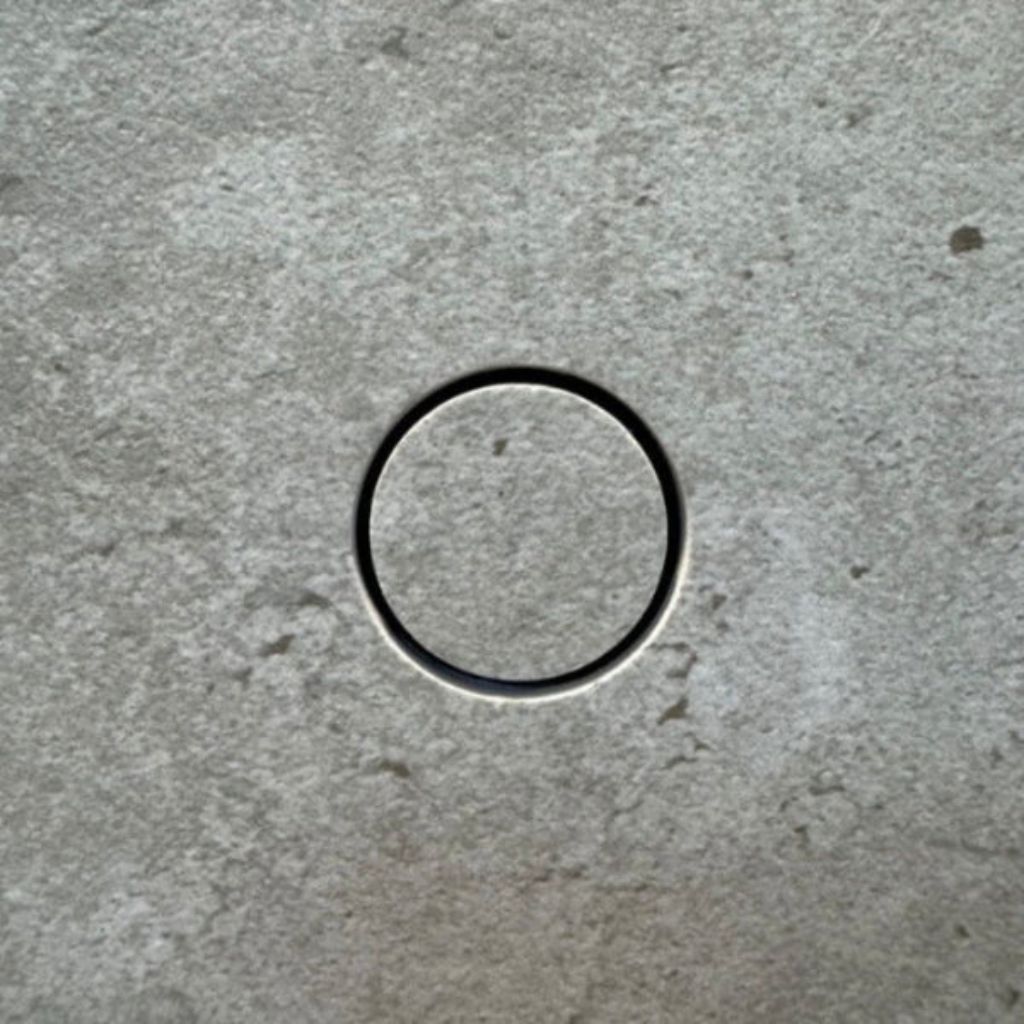

When not in use, the holder remains hidden and flush with the tiled surface. When activated, the internal cylindrical support extends from the wall and can be used to hang the towel.

Operation

The mechanism works with a push system:

• with a first press, the internal cylindrical support extends from the wall and acts as a towel holder;
• with a second press, the cylinder retracts completely, leaving the wall surface smooth and free from visible protruding elements.

Available variants

• set of 3 pieces;
• set of 5 pieces.

Installation steps

1. apply the adhesive positioning guide to the wall to determine the correct drilling point;
2. use the diamond hole saw included in the set to drill the circular hole around the guide;
3. clean and refine the inner walls of the hole with a suitable bit;
4. prepare the tile disc obtained from the drilling process and reduce it to the required thickness using the dedicated accessory;
5. apply adhesive inside the hole and on the component, then insert the holder into the wall;
6. bond the prepared tile disc onto the front part of the component, aligning it with the wall surface;
7. allow the adhesive or sealant to cure according to the manufacturer’s instructions.

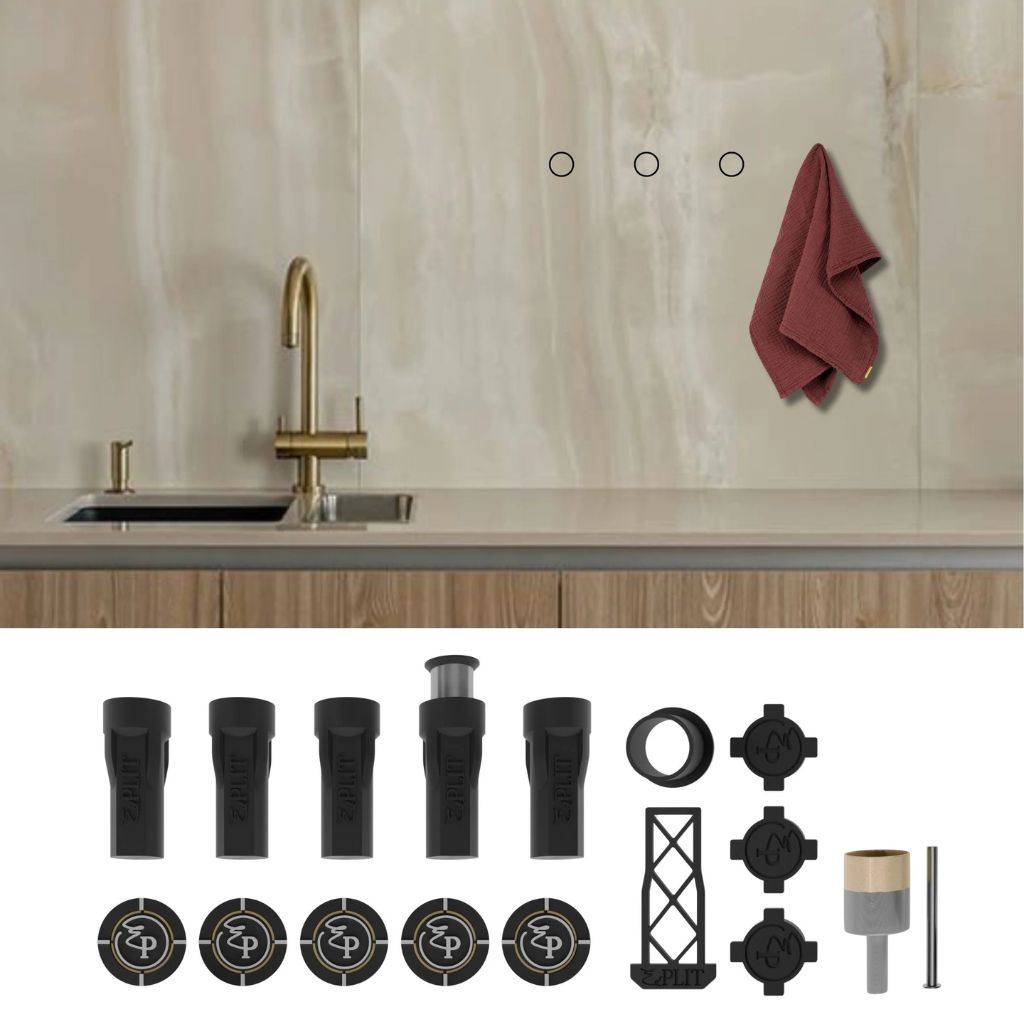

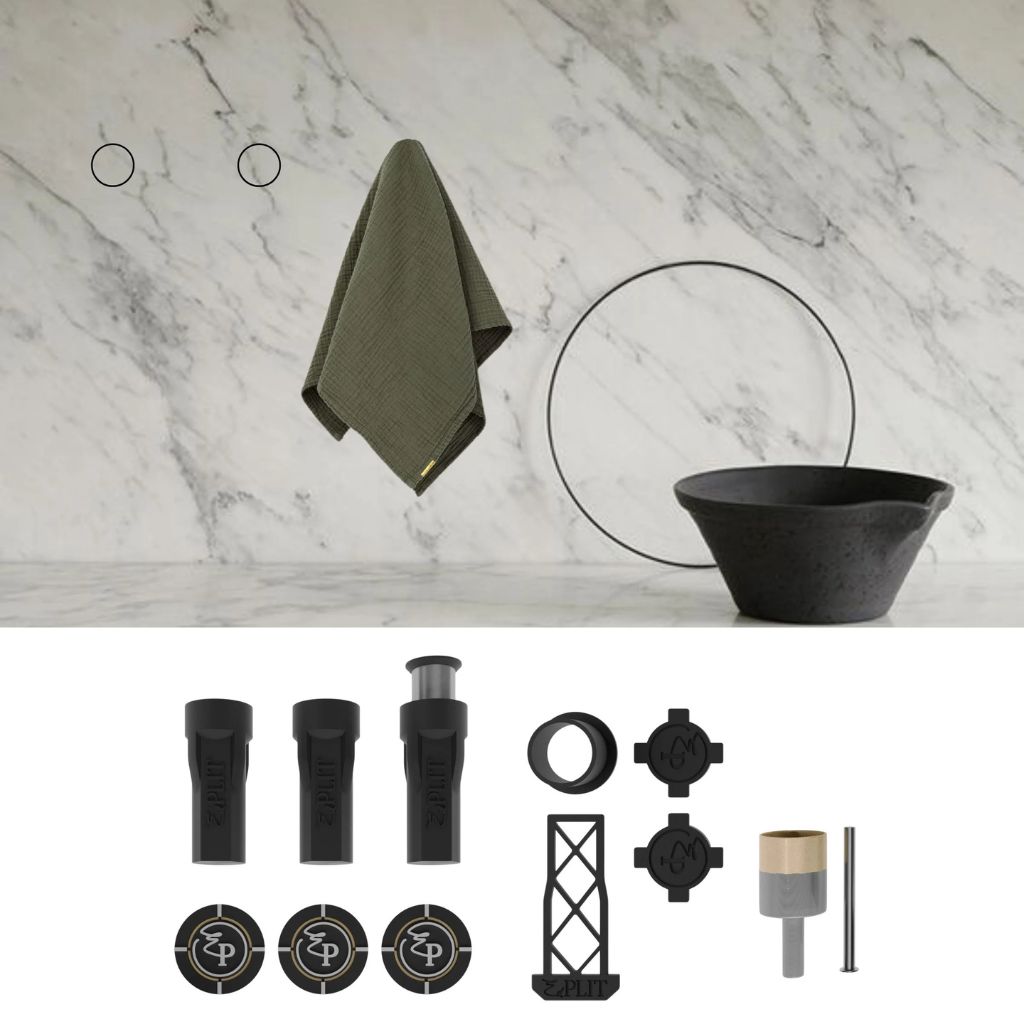

Set contents

• 3 or 5 recessed hidden towel holder units, depending on the selected version;
• diamond hole saw, compatible with standard drills;
• adhesive positioning guide;
• tile thinning accessory/tool;
• installation hardware;
• installation manual.

Note: this system includes the diamond hole saw required to drill the holes. Before installation, make sure the tools, adhesive and sealant are suitable for the type of tile or wall covering being used.
