Manzelli Slab Vacuum lifter “EXENTIAL” single plate

from 1.262,00 €

Capacity

125 Kg
300 Kg
500 Kg

Tilting plate

Manual
Pneumatic

Plate size

450 x 200 mm
600 x 300 mm
600 x 400 mm
800 x 200 mm
800 x 300 mm

Clear selection

Brand

Manzelli

Power supply

Air-Operated

Model

EXENTIAL

Capacity

125 Kg

300 Kg

500 Kg

Tilting plate

Manual

Pneumatic

Class

Lifting suction cup

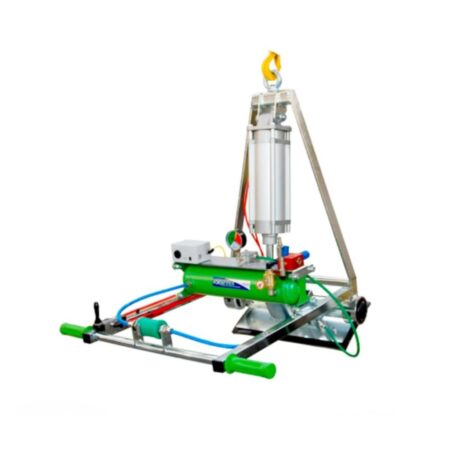

Manzelli Slab Vacuum lifter “EXENTIAL” with single plate | amastone®

A Manzelli vacuum lifter is one of the primary options to consider when you need Stone handling equipment for your stone shop.
This is a Single plate vacuum lifter to lift and move marble, granite, and ceramic slabs. It’s available with a 0º-90º manual or pneumatic tilting system.

EXE1/125
125 Kg maximum capacity
Nº 1 450 x 200 mm galvanized steel plate
Operating pressure for vacuum generation 6 bar
Air consumption 120l/min
0º to 90º vertical-horizontal manual rotation
EXE1/300
300 Kg maximum capacity
Nº 1 600 x 300 mm or 800×200 mm galvanized steel plate
Operating pressure for vacuum generation 6 bar
Air consumption 120l/min
0º to 90º vertical-horizontal manual rotation
EXE1PN/300
300 Kg maximum capacity
Nº 1 600 x 300 mm or 800×200 mm galvanized steel plate
Operating pressure for vacuum generation 6 bar
Air consumption 120l/min
0º to 90º vertical-horizontal pneumatic rotation
EXE1/500
500 Kg maximum capacity
Nº 1 600 x 400 mm or 800×300 mm galvanized steel plate
Operating pressure for vacuum generation 6 bar
Air consumption 120l/min
0º to 90º vertical-horizontal manual rotation
EXE1PN/500
500 Kg maximum capacity
Nº 1 600 x 400 mm or 800×300 mm galvanized steel plate
Operating pressure for vacuum generation 6 bar
Air consumption 120l/min
0º to 90º vertical-horizontal pneumatic rotation

Model	Capacity kg	Plates	A mm	B mm	C mm	D mm	H mm
EXE1/125	125	1	450	200	630	245	400
EXE1/300	300	1	600	300	630	295	400
EXE1/300	300	1	800	200	740	245	420
EXE1/500	500	1	600	400	740	345	420
EXE1/500	500	1	800	300	740	295	420
EXE1PN/300	300	1	600	300	780	815	865
EXE1PN/300	300	1	800	200	780	765	880
EXE1PN/500	500	1	600	400	780	865	865
EXE1PN/500	500	1	800	300	780	815	865

Related products:

Vacuum lifter for slabs “EXENTIAL” 3 plates – Manzelli

Vacuum lifter for slabs “EXENTIAL” 5 plates – Manzelli

Select your option

Capacity	125 Kg 300 Kg 500 Kg
Tilting plate	Manual Pneumatic
Plate size	450 x 200 mm 600 x 300 mm 600 x 400 mm 800 x 200 mm 800 x 300 mm
	Clear selection

SKU: N/A Category: Slab Vacuum Lifters

Specification

Brand	Manzelli
Power supply	Air-Operated
Model	EXENTIAL
Capacity	125 Kg , 300 Kg , 500 Kg
Tilting plate	Manual , Pneumatic
Class	Lifting suction cup

Description

Model	Capacity kg	Plates	A mm	B mm	C mm	D mm	H mm
EXE1/125	125	1	450	200	630	245	400
EXE1/300	300	1	600	300	630	295	400
EXE1/300	300	1	800	200	740	245	420
EXE1/500	500	1	600	400	740	345	420
EXE1/500	500	1	800	300	740	295	420
EXE1PN/300	300	1	600	300	780	815	865
EXE1PN/300	300	1	800	200	780	765	880
EXE1PN/500	500	1	600	400	780	865	865
EXE1PN/500	500	1	800	300	780	815	865
