Electronic Spare Parts and accessories
In our workshop and reconditioning center we use a lot of spare parts for repairing the marble and granite machines. In our shop, you can find some of these Electronic Spare parts for stone machinery as encoders, joints, portable handwheel for CNC and more.
Every day we add more parts in order to offer you the most comprehensive lists of this kind of spare parts.
For parts not listed in our shop please contact us
- Display 24 Products per page
-
Encoder (3)
-
Inverter (3)
-
Portable Handwheels (6)
Other products
Panel female connector 26 poles for Elcis handwheel
Model: Female with 26 poles2 in stock (more shipped in 5-10 days)
Touch probe 3D Measuring sensor - 3D Finder
This is 3D finder Touch Probe sensor is used for scanning, copying, and acquisition of workpieces' shapes (edges, holes, angles). Note:
It's a Mechanical Touch Probe active, this means it needs to be powered and with a tip probe of 2 mm. Touch Probe Applications: Fast zero-point acqui...
Contact type: NC (Normally closed) | Tool fitting: Cylindrical 8 mm | Use with: CNC0 in stock (more shipped in 5-10 days)
Knob for Multi-Turn Potentiometer
Knob 11 turns
ABS plastic construction
Excellent reliability
High accuracy
Locking level for fixed position
Supplied with locking key and instructions
Brand: Vishay | Diameter: 46 mm | Height: 24.6 mm | Shaft Size: 6.35 mm0 in stock (more shipped in 5-10 days)
Joystick 4 Positions NO
Switch standard: 22 mm
Button color: Black All positions are with automatic return to the center.
N° Positions: 4 | N° contacts included: NO x 4 | Stable positions: None | Protection: IP67 | Mounting hole diameter: 22 mm0 in stock (more shipped in 5-10 days)
Joystick 2 Positions NO
Switch standard: 22 mm
Button color: Black All positions are with automatic return to the center.
N° Positions: 2 | N° contacts included: NO x 2 | Stable positions: None | Protection: IP67 | Mounting hole diameter: 22 mm0 in stock (more shipped in 5-10 days)
Bourns – Multiturn potentiometer 10KΩ
Tolerance: ±5%
Linearity tolerance: ±0.25%
Minimum insulation resistance: 1000MΩ
Body dimensions: Ø22.22 x 18.6mm
Number of electrical turns: 10
Length of the axis "L": 22.23 mm (look at photos)
Protection: IP40
Brand: Bourns | Type: Shaft | Kind of potentiometer: Multiturn | Resistance: 10KΩ | Power: 2W | Characteristics: Linear | Shaft diameter: 6.35 mm0 in stock (more shipped in 5-10 days)
Bourns – Single turn potentiometer 10KΩ complete with knob
Tolerance: ±20%
Electrical rotation angle: 250°
Mounting thread: 3/8″x32UNEF
Length of the axis "L": 22.23 mm (look at photos) Diameter: 15 mm
Height: 18.1 mm
Flange diameter: 29.2 mm
Brand: Bourns | Type: Shaft | Kind of potentiometer: Single turn | Resistance: 10KΩ | Power: 1W | Characteristics: Linear | Shaft diameter: 6.35 mm | Potentiometer life: 100.000 cycles0 in stock (more shipped in 5-10 days)
Gloss Meter YD 60°
Professional gloss meter to measure gloss of any material like metal, stone, ceramics, paint, coating, furniture, home appliance, auto, plastics and other decorative materials. When you need to define the brilliance of materials this is the tool for you. To measure the gloss of a surface you ...
Model: YD 60 | Measurement Geometry: 60° | Display range: 0 - 199.9 | Dimension: 118 x 38 x h70 mmShipped within 5-10 days

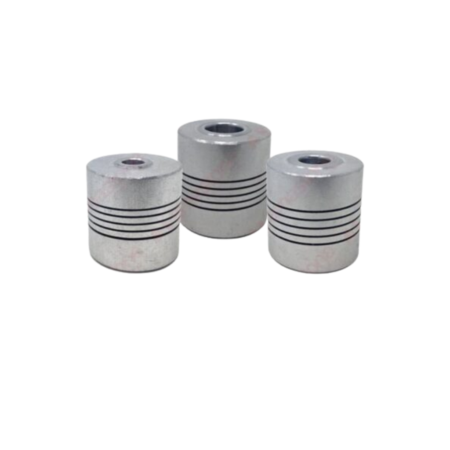

Aluminum flexible coupling
made with a cylindrical body in aluminum alloy on which a helical cut was engraved to give the ability to absorb and compensate slight radial and axial misalignments between the drive shaft and the rotating component. They can be used for the connection of encoders, pumps, tachometers, fans...
Model: Cylindrical bellows | Condition: NewVariable product - view product to verify stock
Flexible Couplings type Paguflex
Flexible Couplings used for the connection between a drive shaft and another rotating component. Its function is to ensure the correct rotation of the connected elements decreasing axial and radial forces.
The are made of polyurethane and allow greater compensation than aluminum flexible co...
Model: Double Loop | Condition: NewVariable product - view product to verify stock
Tool length setter for CNC Machine
Professional Tool Length Setter device for measuring the height of the tool in CNC machines and working centers.
It is compatible with any control with an NC input (Normally Closed). This probe has 2 contacts, each of them has 2 wires that create a simple electrical contact. These electrical ...
Brand: HNC | Height: 66 mm | Contact diameter: 20 mm | Material: Iron, Stainless Steel | Power supply: DC24V 20mA | Protection level: IP68 | Contact lifetime: 5 million times | Contact force: 1.5 N | Repeatability: 0,002 mm | Recommended speed: 50/200 mm/min | Use with: CNC4 in stock (more shipped in 5-10 days)
Touch probe 3D Measuring sensor - Amastone
This is the Amastone touch probe sensor for CNC machines that allows you to scan, copy, and acquire workpieces' shapes (edges, holes, angles). This probe is passive so it doesn't need and wire to power it and the tip probe is 4 mm. Fast zero-point acquisitions
Workpiece Scanning
...
Contact type: NC (Normally closed) | Tool fitting: Cylindrical 7 mm | Use with: CNC0 in stock (more shipped in 5-10 days)
QEM - Panel meters MC235.01T for Pellegrini wire saw
Brand: QEM | Model: MC235.01T | Power supply: 24V AC | Use with: Wiresaw0 in stock (more shipped in 5-10 days)
