Showing all 44 results

CNC 45° Vacuum-brazed Conical Finger Bit – Amastone

99,00  Net of VAT
CNC 45° Vacuum-brazed Conical Finger Bit – Amastone Ø 30 mm – 1/2 Gas fitting | suitable for natural stone

CNC incremental cutting router bit Dekton and Ceramic – ADW

80,80  Net of VAT
Dekton CNC incremental cutting router bit – ADW This CNC router bit is ideal to make incremental cutting on Dekton and

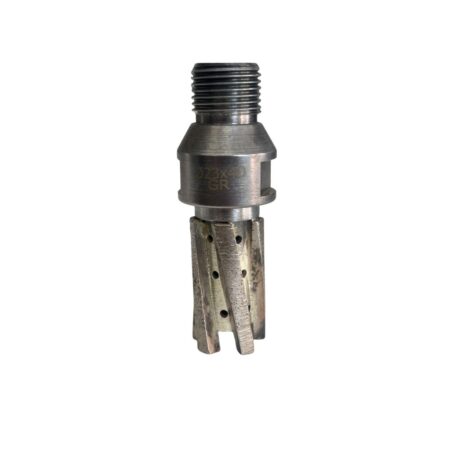

Quartzite cutting CNC Finger Bit – Nicolai

104,80  Net of VAT
CNC Finger bit natural quartzite Ø23×40 mm – Nicolai CNC finger bit for cutting natural quartzite and extra hard granite.

Vacuum brazed Drum for CNC and angle grinder – Amastone

60,00 120,00  Net of VAT
Vacuum brazed Drum for angle grinders and CNC machines – Amastone Used to grind inside sink cut-outs This vacuum-brazed Drum

Vacuum brazed CNC finger bit – Amastone

60,00 90,00  Net of VAT
Vacuum-brazed CNC finger bit for marble and ceramic – Amastone This vacuum-brazed finger bit is ideal for cutting marble and

CNC Granite finger bit – Amastone

80,08  Net of VAT
CNC Diamond Finger Router Bit for granite and quartz – ø20 x 42 mm – Amastone CNC sintered finger bit

WEHA CNC finger bit for ceramic

129,00  Net of VAT
WEHA CNC finger bit for ceramic – Ø 20 mm – 1/2″ fitting Router specifically designed for cutting UCS materials

Ceramic Finger bit – Diamut

Ceramic working Finger bit for – Diamut for CNC machines and available in diameter 16mm. and 20mm. D L1 Z RPM
Not available

Finger bit for Dekton® – Diamut

Dekton® Finger bit – Diamut Diamut CNC finger bit for Dekton slabs cutting. Diameter 20mm. Working parameters RPM: 7500-8000 FEED mm/min:
Not available

Vacuum Brazed finger bit – Granite, Engineered Stone – Diamut

Vacuum Brazed finger bit – Granite, Engineered Stone – Diamut Vacuum brazed finger bit ideal for granite and hard natural
Not available

Finger bit – Granite, Engineered Stone – Diamut

Finger bit – Granite, Engineered Stone – Diamut Working parameters RPM: 4500-5000 Feed: 200-350 mm/min
Not available

Hard Granite Finger bit “Green line” – Diamut

Hard Granite Finger bit “Green line” – Diamut Finger bit for CNC machine specific for hard granite. This finger bit is
Not available

High-speed finger bit Black Storm – Granite, Engineered Stone – Diamut

High-speed finger bit Black Storm for Granite, Engineered Stone – Diamut High-speed finger bit for CNC machine. This finger bit
Not available

General-purpose finger bit “Blue line” – Granite, Engineered Stone – Diamut

Universal finger bit “Blue line” – Granite, Engineered Stone – Diamut Universal end mill suitable for engineered stone, hard and
Not available

Long-life finger bit “Gold line” – Granite, Engineered Stone – Diamut

Long-life finger bit “Gold line” – Granite, Engineered Stone – Diamut Long-life finger bit for hard granites and engineered stones.
Not available

CNC Router bits carbon fiber and fiberglass – Spektra Extreme Tool

34,50  Net of VAT
CNC Router bits for carbon fiber and fiberglass – Spektra™ Extreme Tool Solid Carbide CNC Spektra™ Extreme Tool Life Coated

Electroplated threaded finger bit for replaceable tips – Marble – Diamar

152,00 312,00  Net of VAT
Electroplated threaded finger bit for replaceable tips Electroplated Threaded finger bit for marble working and suitable for the use of the replaceable

Finger bit for ceramic – Diatex

116,02  Net of VAT
Miller Finger for ceramic big slabs If you are looking for a cutting finger bit for ceramic and to use

Electroplated finger bit for Marble – Diamar

75,00 142,50  Net of VAT
CNC Electroplated finger bit for Marble cutting When you need to cut and profile marble or soft-stone with your CNC

Round-head electroplated router bit for marble – 10-mm cylindrical shank – Diamar

27,20 44,80  Net of VAT
Round-head electroplated router bit for marble Electroplated router bit with round (ball-nose) head used for carving on marble with CNC

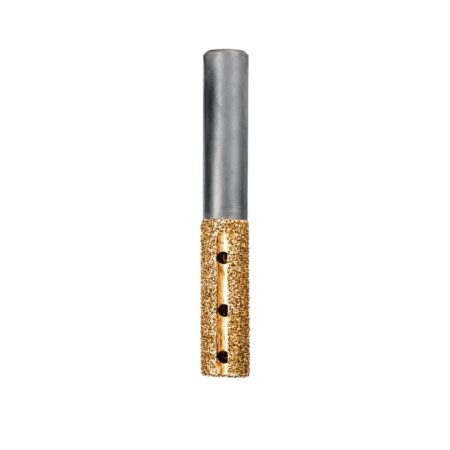

Electroplated flat router bit – Diamar

24,00 64,00  Net of VAT
Flat Tip marble router bits CNC marble router bits ideal also to work materials such as soft stones and concrete.

Segmented Step Cutters for Incremental Cutting – Granite – Nicolai

121,60 168,00  Net of VAT
CODE SIZE FITTING
AFS91082 Ø23 x 40 / Z5 FB2 1/2 Gas
AFS91083 Ø23 x 40 / Z5 FB3 1/2 Gas
AFS91084 Ø23 x 50 / Z5 FB2 1/2 Gas
AFS91085 Ø23 x 50 / Z5 FB3 1/2 Gas
AFS90000 Ø23 L25 LT40 1/2 Gas
AFS90065 Ø28 L40 LT95 1/2 Gas
AFS90066 Ø28 L40 LT105 1/2 Gas
AFS90067 Ø28 L40 LT125 1/2 Gas
AFS90080 Ø30 L30 LT40 1/2 Gas

CNC Blind-Hole Bits for Granite and Ceramic – Nicolai

16,00 35,28  Net of VAT

Electroplated finger bit – Marble – Nicolai

141,60 282,40  Net of VAT

Nicolai – Blue twin finger bit for incremental cutting – Granite, Engineered Stone – Nicolai

111,90  Net of VAT
Nicolai – Blue twin finger bit for incremental cutting  – Granite, Engineered Stone Very hard binder FB0 is suggested for

CNC Router Finger Milling Bits


Diamond CNC Finger bits for stone fabrication (to work marble, granite, ceramics, and synthetic materials such as Lapitec, Dekton, or Neolith

Large selection of finger bits for all-natural stone, quartz, engineered stones, natural quartzite, ceramic and ultra-compact surfaces.
(For the glass working: CNC glass cutting bit)

Single-pass or Multiple-passes cutting?

Single-pass cutting if you want to get a better finish without having the steps visible and because it spreads the wear over a longer flute length, which means your tool will last longer. If you can cut in one pass and get a clean cut and good speed – do it.
Multiple-passes cutting (incremental cutting) if you have a small CNC router and you need to cut without creating excessive tool deflection to minimize the risk of tool breakage or if the piece could move on the table.

Common rule for soft materials (if you are cutting granite or quartzite it could not be valid): It’s best to cut all the way through as the tip of a bit wears n-times faster taking n passes instead of one.
The best bit life is had with top speed and most material removed per pass within the limit of cut quality and machine power

As with other types of CNC tools, the following general rule applies: use an electroplated finger bit to work materials such as stone and marble; choose a sintered-segment finger bit to work hard stone such as granite, lava stone, basalt, or quartz.
The bonding matrix is a very important factor when choosing the most appropriate sintered-segment finger bit. The bond must be chosen based on the material to cut:

  • Use a very soft bond (FB23) when cutting quartz, engineered stone, ceramic, Dekton, Laminam, Lapitec, Neolith…
  • Use a soft bond (FB3) when cutting hard quartz
  • Use a medium hardness bond (FB2) when cutting medium-hardness materials
  • Use a hard bond (FB1) when cutting soft materials

Our vast assortment of Diamond CNC Finger Bits is intended for CNC machines, fabrication centers, and radial-arm machines.
Fingers bits are one of the most common CNC tools used being employed to mill material and cut any type of curve in stone.
We provide different types of finger bits to make fast, accurate, and enduring cuts in any material or job. Specifically, we offer:

  • Electroplated finger bits for marble
  • Sintered hard-bond finger bits for soft stone
  • Sintered soft-bond finger bits for hard granite and engineered stone
  • Sintered very-soft-bond finger bits designed for the hardest stones like quartzite

Remember, a soft material requires a hard-bond finger bit whereas a hard material requires a soft-bond bit.
1/2” gas is the standard connection, however, we also have interchangeable bit tips with an M10 or M12 thread for the replaceable piece. Cylindrical shank or flange connections are also available.


N.B.
The cutting surface of a finger bit is always “on the side”. Never plunge a finger bit into a material in the Z-direction, only use a lateral motion in the X-Y plane. To plunge from top to bottom, use an interchangeable finger bit tip, or the segmented finger bit specifically designed for incremental cuts.

Choosing the right sintered finger bit for a particular job can be confusing due to the vast assortment of bits available. Consult the following chart for assistance:

FLOW CHART FOR SELECTING NICOLAI DIAMANT SINTERED FINGER BITS
